kwcoco.coco_dataset module

An implementation and extension of the original MS-COCO API [CocoFormat].

The KWCoco format is backwards compatible with MS-COCO. It adds support for multispectral imagery, videos in the form of images sequences, annotation tracks, line annotations, and defines alternative (and often more intuitive) encodings of keypoint and segmentation data structure.

An informal description of the spec is given in:

coco_schema_informal.rst.

A formal json-schema is defined in kwcoco.coco_schema.

Note

The main object in this file is CocoDataset, which is composed of several mixin classes. See the class and method documentation for more details.

Todo

• [ ] Use ijson (modified to support NaN) to lazilly load pieces of the

  dataset in the background or on demand. This will give us faster access to categories / images, whereas we will always have to wait for annotations etc…

• [X] Should img_root be changed to bundle_dpath?

• [ ] Read video data, return numpy arrays (requires API for images)

• [ ] Spec for video URI, and convert to frames @ framerate function.

• [x] Document channel spec

• [x] Document sensor-channel spec

• [X] Add remove videos method

• [ ] Efficiency: Make video annotations more efficient by only tracking

  keyframes, provide an API to obtain a dense or interpolated annotation on an intermediate frame.

• [ ] Efficiency: Allow each section of the kwcoco file to be written as a

  separate json file. Perhaps allow generic pointer support? Might get messy.

• [ ] Reroot needs to be redesigned very carefully.

• [ ] Allow parts of the kwcoco file to be references to other json files.

• [X] Add top-level track table

• [ ] Fully transition to integer track ids (in progress)

References

[CocoFormat]

http://cocodataset.org/#format-data

[PyCocoToolsMask]

https://github.com/nightrome/cocostuffapi/blob/master/PythonAPI/pycocotools/mask.py

[CocoTutorial]

https://www.immersivelimit.com/tutorials/create-coco-annotations-from-scratch/#coco-dataset-format

class kwcoco.coco_dataset.MixinCocoDepricate

Bases: object

These functions are marked for deprecation and will be removed

keypoint_annotation_frequency()

DEPRECATED

Example

>>> import kwcoco
>>> import ubelt as ub
>>> self = kwcoco.CocoDataset.demo('shapes', rng=0)
>>> hist = self.keypoint_annotation_frequency()
>>> hist = ub.odict(sorted(hist.items()))
>>> # FIXME: for whatever reason demodata generation is not deterministic when seeded
>>> print(ub.urepr(hist))  # xdoc: +IGNORE_WANT
{
    'bot_tip': 6,
    'left_eye': 14,
    'mid_tip': 6,
    'right_eye': 14,
    'top_tip': 6,
}

category_annotation_type_frequency()

DEPRECATED

Reports the number of annotations of each type for each category

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> hist = self.category_annotation_frequency()
>>> print(ub.urepr(hist))

imread(gid)

DEPRECATED: use load_image or delayed_image

Loads a particular image

class kwcoco.coco_dataset.MixinCocoAccessors

Bases: object

TODO: better name

delayed_load(gid, channels=None, space='image')

Experimental method

Parameters:

• gid (int) – image id to load

• channels (kwcoco.FusedChannelSpec) – specific channels to load. if unspecified, all channels are loaded.

• space (str) – can either be “image” for loading in image space, or “video” for loading in video space.

Todo

• [X] Currently can only take all or none of the channels from each

  base-image / auxiliary dict. For instance if the main image is r|g|b you can’t just select g|b at the moment.

• [X] The order of the channels in the delayed load should

  match the requested channel order.

• [X] TODO: add nans to bands that don’t exist or throw an error

Example

>>> import kwcoco
>>> gid = 1
>>> #
>>> self = kwcoco.CocoDataset.demo('vidshapes8-multispectral')
>>> delayed = self.delayed_load(gid)
>>> print('delayed = {!r}'.format(delayed))
>>> print('delayed.finalize() = {!r}'.format(delayed.finalize()))
>>> #
>>> self = kwcoco.CocoDataset.demo('shapes8')
>>> delayed = self.delayed_load(gid)
>>> print('delayed = {!r}'.format(delayed))
>>> print('delayed.finalize() = {!r}'.format(delayed.finalize()))

>>> crop = delayed.crop((slice(0, 3), slice(0, 3)))
>>> crop.finalize()

>>> # TODO: should only select the "red" channel
>>> self = kwcoco.CocoDataset.demo('shapes8')
>>> delayed = self.delayed_load(gid, channels='r')

>>> import kwcoco
>>> gid = 1
>>> #
>>> self = kwcoco.CocoDataset.demo('vidshapes8-multispectral')
>>> delayed = self.delayed_load(gid, channels='B1|B2', space='image')
>>> print('delayed = {!r}'.format(delayed))
>>> delayed = self.delayed_load(gid, channels='B1|B2|B11', space='image')
>>> print('delayed = {!r}'.format(delayed))
>>> delayed = self.delayed_load(gid, channels='B8|B1', space='video')
>>> print('delayed = {!r}'.format(delayed))

>>> delayed = self.delayed_load(gid, channels='B8|foo|bar|B1', space='video')
>>> print('delayed = {!r}'.format(delayed))

load_image(gid_or_img, channels=None)

Reads an image from disk and

Parameters:

• gid_or_img (int | dict) – image id or image dict

• channels (str | None) – if specified, load data from auxiliary channels instead

Returns:

the image

Return type:

np.ndarray

Note

Prefer to use the CocoImage methods instead

get_image_fpath(gid_or_img, channels=None)

Returns the full path to the image

Parameters:

• gid_or_img (int | dict) – image id or image dict

• channels (str | None) – if specified, return a path to data containing auxiliary channels instead

Note

Prefer to use the CocoImage methods instead

Returns:

full path to the image

Return type:

PathLike

_get_img_auxiliary(gid_or_img, channels)

returns the auxiliary dictionary for a specific channel

get_auxiliary_fpath(gid_or_img, channels)

Returns the full path to auxiliary data for an image

Parameters:

• gid_or_img (int | dict) – an image or its id

• channels (str) – the auxiliary channel to load (e.g. disparity)

Note

Prefer to use the CocoImage methods instead

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes8', aux=True)
>>> self.get_auxiliary_fpath(1, 'disparity')

load_annot_sample(aid_or_ann, image=None, pad=None)

Reads the chip of an annotation. Note this is much less efficient than using a sampler, but it doesn’t require disk cache.

Maybe deprecate?

Parameters:

• aid_or_int (int | dict) – annot id or dict

• image (ArrayLike | None) – preloaded image (note: this process is inefficient unless image is specified)

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> sample = self.load_annot_sample(2, pad=100)
>>> # xdoctest: +REQUIRES(--show)
>>> import kwplot
>>> kwplot.autompl()
>>> kwplot.imshow(sample['im'])
>>> kwplot.show_if_requested()

_resolve_to_id(id_or_dict)

Ensures output is an id

_resolve_to_cid(id_or_name_or_dict)

Ensures output is an category id

Note

this does not resolve aliases (yet), for that see _alias_to_cat

Todo

we could maintain an alias index to make this fast

_resolve_to_gid(id_or_name_or_dict)

Ensures output is an category id

_resolve_to_vidid(id_or_name_or_dict)

Ensures output is an video id

_resolve_to_trackid(id_or_name_or_dict)

_resolve_to_ann(aid_or_ann)

Ensures output is an annotation dictionary

_resolve_to_img(gid_or_img)

Ensures output is an image dictionary

_resolve_to_kpcat(kp_identifier)

Lookup a keypoint-category dict via its name or id

Parameters:

kp_identifier (int | str | dict) – either the keypoint category name, alias, or its keypoint_category_id.

Returns:

keypoint category dictionary

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes')
>>> kpcat1 = self._resolve_to_kpcat(1)
>>> kpcat2 = self._resolve_to_kpcat('left_eye')
>>> assert kpcat1 is kpcat2
>>> import pytest
>>> with pytest.raises(KeyError):
>>>     self._resolve_to_cat('human')

_resolve_to_cat(cat_identifier)

Lookup a coco-category dict via its name, alias, or id.

Parameters:

cat_identifier (int | str | dict) – either the category name, alias, or its category_id.

Raises:

KeyError – if the category doesn’t exist.

Note

If the index is not built, the method will work but may be slow.

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> cat = self._resolve_to_cat('human')
>>> import pytest
>>> assert self._resolve_to_cat(cat['id']) is cat
>>> assert self._resolve_to_cat(cat) is cat
>>> with pytest.raises(KeyError):
>>>     self._resolve_to_cat(32)
>>> self.index.clear()
>>> assert self._resolve_to_cat(cat['id']) is cat
>>> with pytest.raises(KeyError):
>>>     self._resolve_to_cat(32)

_alias_to_cat(alias_catname)

Lookup a coco-category via its name or an “alias” name. In production code, use _resolve_to_cat() instead.

Parameters:

alias_catname (str) – category name or alias

Returns:

coco category dictionary

Return type:

dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> cat = self._alias_to_cat('human')
>>> import pytest
>>> with pytest.raises(KeyError):
>>>     self._alias_to_cat('person')
>>> cat['alias'] = ['person']
>>> self._alias_to_cat('person')
>>> cat['alias'] = 'person'
>>> self._alias_to_cat('person')
>>> assert self._alias_to_cat(None) is None

category_graph()

Construct a networkx category hierarchy

Returns:

graph: a directed graph where category names are the nodes, supercategories define edges, and items in each category dict (e.g. category id) are added as node properties.

Return type:

networkx.DiGraph

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> graph = self.category_graph()
>>> assert 'astronaut' in graph.nodes()
>>> assert 'keypoints' in graph.nodes['human']

object_categories()

Construct a consistent CategoryTree representation of object classes

Returns:

category data structure

Return type:

kwcoco.CategoryTree

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> classes = self.object_categories()
>>> print('classes = {}'.format(classes))

keypoint_categories()

Construct a consistent CategoryTree representation of keypoint classes

Returns:

category data structure

Return type:

kwcoco.CategoryTree

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> classes = self.keypoint_categories()
>>> print('classes = {}'.format(classes))

_keypoint_category_names()

Construct keypoint categories names.

Uses new-style if possible, otherwise this falls back on old-style.

Returns:

names - list of keypoint category names

Return type:

List[str]

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> names = self._keypoint_category_names()
>>> print(names)

_lookup_kpnames(cid)

Get the keypoint categories for a certain class

_coco_image(gid)

coco_image(gid)

Parameters:

gid (int) – image id

Returns:

CocoImage

class kwcoco.coco_dataset.MixinCocoConstructors

Bases: object

Classmethods for constructing CocoDataset objects

classmethod coerce(key, sqlview=False, verbose=0, **kw)

Attempt to transform the input into the intended CocoDataset.

Parameters:

• key – this can either be an instance of a CocoDataset, a string URI pointing to an on-disk dataset, or a special key for creating demodata.

• sqlview (bool | str) – If truthy, will return the dataset as a cached sql view, which can be quicker to load and use in some instances. Can be given as a string, which sets the backend that is used: either sqlite or postgresql. Defaults to False.

• verbose (int) – passed to coerce or demo if special constructors are used.

• **kw – passed to whatever constructor is chosen (if any)

Returns:

AbstractCocoDataset | kwcoco.CocoDataset | kwcoco.CocoSqlDatabase

Example

>>> # test coerce for various input methods
>>> import kwcoco
>>> from kwcoco.coco_sql_dataset import assert_dsets_allclose
>>> dct_dset = kwcoco.CocoDataset.coerce('special:shapes8')
>>> copy1 = kwcoco.CocoDataset.coerce(dct_dset)
>>> copy2 = kwcoco.CocoDataset.coerce(dct_dset.fpath)
>>> assert assert_dsets_allclose(dct_dset, copy1)
>>> assert assert_dsets_allclose(dct_dset, copy2)
>>> # xdoctest: +REQUIRES(module:sqlalchemy)
>>> sql_dset = dct_dset.view_sql()
>>> copy3 = kwcoco.CocoDataset.coerce(sql_dset)
>>> copy4 = kwcoco.CocoDataset.coerce(sql_dset.fpath)
>>> assert assert_dsets_allclose(dct_dset, sql_dset)
>>> assert assert_dsets_allclose(dct_dset, copy3)
>>> assert assert_dsets_allclose(dct_dset, copy4)

classmethod demo(key='photos', **kwargs)

Create a toy coco dataset for testing and demo purposes

Parameters:

• key (str) – Either ‘photos’ (default), ‘shapes’, or ‘vidshapes’. There are also special suffixes that can control behavior.

  Basic options that define which flavor of demodata to generate are: photos, shapes, and vidshapes. A numeric suffix e.g. vidshapes8 can be specified to indicate the size of the generated demo dataset. There are other special suffixes that are available. See the code in this function for explicit details on what is allowed.

  TODO: better documentation for these demo datasets.

  As a quick summary: the vidshapes key is the most robust and mature demodata set, and here are several useful variants of the vidshapes key.

  1. vidshapes8 - the 8 suffix is the number of videos in this case.

  2. vidshapes8-multispectral - generate 8 multispectral videos.

  3. vidshapes8-msi - msi is an alias for multispectral.

  4. vidshapes8-frames5 - generate 8 videos with 5 frames each.

  5. vidshapes2-tracks5 - generate 2 videos with 5 tracks each.

  (6) vidshapes2-speed0.1-frames7 - generate 2 videos with 7 frames where the objects move with with a speed of 0.1.

• **kwargs – if key is shapes, these arguments are passed to toydata generation. The Kwargs section of this docstring documents a subset of the available options. For full details, see demodata_toy_dset() and random_video_dset().

  Notable options are:

  bundle_dpath (PathLike): location to write the demo bundle fpath (PathLike): location to write the demo kwcoco file

Kwargs:

image_size (Tuple[int, int]): width / height size of the images

dpath (str | PathLike):

path to the directory where any generated demo bundles will be written to. Defaults to using kwcoco cache dir.

aux (bool): if True generates dummy auxiliary channels

rng (int | RandomState | None):

random number generator or seed

verbose (int): verbosity mode. Defaults to 3.

Example

>>> # Basic demodata keys
>>> print(CocoDataset.demo('photos', verbose=1))
>>> print(CocoDataset.demo('shapes', verbose=1))
>>> print(CocoDataset.demo('vidshapes', verbose=1))
>>> # Variants of demodata keys
>>> print(CocoDataset.demo('shapes8', verbose=0))
>>> print(CocoDataset.demo('shapes8-msi', verbose=0))
>>> print(CocoDataset.demo('shapes8-frames1-speed0.2-msi', verbose=0))

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('vidshapes5', num_frames=5,
>>>                                verbose=0, rng=None)
>>> dset = kwcoco.CocoDataset.demo('vidshapes5', num_frames=5,
>>>                                num_tracks=4, verbose=0, rng=44)

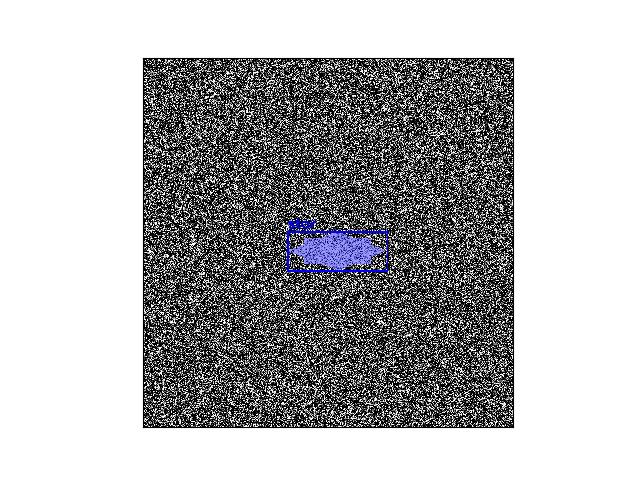

>>> # xdoctest: +REQUIRES(--show)
>>> import kwplot
>>> kwplot.autompl()
>>> pnums = kwplot.PlotNums(nSubplots=len(dset.index.imgs))
>>> fnum = 1
>>> for gx, gid in enumerate(dset.index.imgs.keys()):
>>>     canvas = dset.draw_image(gid=gid)
>>>     kwplot.imshow(canvas, pnum=pnums[gx], fnum=fnum)
>>>     #dset.show_image(gid=gid, pnum=pnums[gx])
>>> kwplot.show_if_requested()

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('vidshapes5-aux', num_frames=1,
>>>                                verbose=0, rng=None)

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('vidshapes1-multispectral', num_frames=5,
>>>                                verbose=0, rng=None)
>>> # This is the first use-case of image names
>>> assert len(dset.index.file_name_to_img) == 0, (
>>>     'the multispectral demo case has no "base" image')
>>> assert len(dset.index.name_to_img) == len(dset.index.imgs) == 5
>>> dset.remove_images([1])
>>> assert len(dset.index.name_to_img) == len(dset.index.imgs) == 4
>>> dset.remove_videos([1])
>>> assert len(dset.index.name_to_img) == len(dset.index.imgs) == 0

classmethod random(rng=None)

Creates a random CocoDataset according to distribution parameters

Todo

• [ ] parametarize

classmethod empty()

Create an empty dataset

classmethod load(file, bundle_dpath=None, autobuild=True)

Constructor from a open file or file path.

Parameters:

file (PathLike | IO) – Where to read the data. Can either be a path to a file or an open file pointer / stream.

Returns:

the loaded dataset

Return type:

CocoDataset

Example

>>> import kwcoco
>>> # Create demo data to load
>>> demo_dset = kwcoco.CocoDataset.demo('shapes1')
>>> fpath = demo_dset.fpath
>>> bundle_dpath = demo_dset.bundle_dpath
>>> # Create a CocoDataset from the filepath
>>> dset1 = kwcoco.CocoDataset.load(fpath)
>>> # Create a CocoDataset from an open file
>>> with open(fpath, 'r') as file:
>>>     dset2 = kwcoco.CocoDataset.load(file, bundle_dpath=bundle_dpath)

classmethod from_data(data, bundle_dpath=None, img_root=None)

Constructor from a json dictionary

Return type:

CocoDataset

classmethod from_image_paths(gpaths, bundle_dpath=None, img_root=None)

Constructor from a list of images paths.

This is a convenience method.

Parameters:

gpaths (List[str]) – list of image paths

Return type:

CocoDataset

Example

>>> import kwcoco
>>> coco_dset = kwcoco.CocoDataset.from_image_paths(['a.png', 'b.png'])
>>> assert coco_dset.n_images == 2

classmethod from_class_image_paths(root)

Ingest classification data in the common format where images of different categories are stored in folders with the category label.

Parameters:

root (str | PathLike) – the path to a directory containing class-subdirectories

Return type:

CocoDataset

classmethod coerce_multiple(datas, workers=0, mode='process', verbose=0, postprocess=None, ordered=True, **kwargs)

Coerce multiple CocoDataset objects in parallel.

Parameters:

• datas (List) – list of kwcoco coercables to load

• workers (int | str) – number of worker threads / processes. Can also accept coerceable workers.

• mode (str) – Parallelism type, can be: ‘thread’, ‘process’, or ‘serial’. Defaults to ‘process’.

• verbose (int) – verbosity level

• postprocess (Callable | None) – A function taking one arg (the loaded dataset) to run on the loaded kwcoco dataset in background workers. This can be more efficient when postprocessing is independent per kwcoco file.

• ordered (bool) – if True yields datasets in the same order as given. Otherwise results are yielded as they become available. Defaults to True.

• **kwargs – arguments passed to the constructor

Yields:

CocoDataset

SeeAlso:

• load_multiple - like this function but is a strict file-path-only loader

CommandLine

xdoctest -m kwcoco.coco_dataset MixinCocoConstructors.coerce_multiple

Example

>>> import kwcoco
>>> dset1 = kwcoco.CocoDataset.demo('shapes1')
>>> dset2 = kwcoco.CocoDataset.demo('shapes2')
>>> dset3 = kwcoco.CocoDataset.demo('vidshapes8')
>>> dsets = [dset1, dset2, dset3]
>>> input_fpaths = [d.fpath for d in dsets]
>>> results = list(kwcoco.CocoDataset.coerce_multiple(input_fpaths, ordered=True))
>>> result_fpaths = [r.fpath for r in results]
>>> assert result_fpaths == input_fpaths
>>> # Test unordered
>>> results1 = list(kwcoco.CocoDataset.coerce_multiple(input_fpaths, ordered=False))
>>> result_fpaths = [r.fpath for r in results]
>>> assert set(result_fpaths) == set(input_fpaths)
>>> #
>>> # Coerce from existing datasets
>>> results2 = list(kwcoco.CocoDataset.coerce_multiple(dsets, ordered=True, workers=0))
>>> assert results2[0] is dsets[0]

classmethod load_multiple(fpaths, workers=0, mode='process', verbose=1, postprocess=None, ordered=True, **kwargs)

Load multiple CocoDataset objects in parallel.

Parameters:

• fpaths (List[str | PathLike]) – list of paths to multiple coco files to be loaded

• workers (int) – number of worker threads / processes

• mode (str) – Parallelism type, can be: ‘thread’, ‘process’, or ‘serial’. Defaults to ‘process’.

• verbose (int) – verbosity level

• postprocess (Callable | None) – A function taking one arg (the loaded dataset) to run on the loaded kwcoco dataset in background workers and returns the modified dataset. This can be more efficient when postprocessing is independent per kwcoco file.

• ordered (bool) – if True yields datasets in the same order as given. Otherwise results are yielded as they become available. Defaults to True.

• **kwargs – arguments passed to the constructor

Yields:

CocoDataset

SeeAlso:

• coerce_multiple - like this function but accepts general

  coercible inputs.

classmethod _load_multiple(_loader, inputs, workers=0, mode='process', verbose=1, postprocess=None, ordered=True, **kwargs)

Shared logic for multiprocessing loaders.

SeeAlso:

• coerce_multiple

• load_multiple

classmethod from_coco_paths(fpaths, max_workers=0, verbose=1, mode='thread', union='try')

Constructor from multiple coco file paths.

Loads multiple coco datasets and unions the result

Note

if the union operation fails, the list of individually loaded files is returned instead.

Parameters:

• fpaths (List[str]) – list of paths to multiple coco files to be loaded and unioned.

• max_workers (int) – number of worker threads / processes

• verbose (int) – verbosity level

• mode (str) – thread, process, or serial

• union (str | bool) – If True, unions the result datasets after loading. If False, just returns the result list. If ‘try’, then try to perform the union, but return the result list if it fails. Default=’try’

Note

This may be deprecated. Use load_multiple or coerce_multiple and then manually perform the union.

class kwcoco.coco_dataset.MixinCocoExtras

Bases: object

Misc functions for coco

_tree()

developer helper

_dataset_id()

A human interpretable name that can be used to uniquely identify the dataset.

Note

This function is currently subject to change.

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> print(self._dataset_id())
>>> self = kwcoco.CocoDataset.demo('vidshapes8')
>>> print(self._dataset_id())
>>> self = kwcoco.CocoDataset()
>>> print(self._dataset_id())

_ensure_imgsize(workers=0, verbose=1, fail=False)

Populate the imgsize field if it does not exist.

Parameters:

• workers (int) – number of workers for parallel processing.

• verbose (int) – verbosity level

• fail (bool) – if True, raises an exception if anything size fails to load.

Returns:

summary: contains an overview of what was done / what failed.

Key/Value pairs are:

message (str): overview of what happened bad_images (List[dict]):

a list of “bad” image dictionaries where the size could not be determined. Typically these are corrupted images and should be removed.

num_attempts (int): number of size read jobs attempted num_modified (int): number of images changed num_failed (int): number of images changed

Return type:

Dict

Example

>>> # Normal case
>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> summary = self._ensure_imgsize()
>>> assert len(summary['bad_images']) == 0
>>> assert self.imgs[1]['width'] == 512
>>> assert self.imgs[2]['width'] == 328
>>> assert self.imgs[3]['width'] == 256

>>> # Fail cases
>>> self = kwcoco.CocoDataset()
>>> self.add_image('does-not-exist.jpg')
>>> summary = self._ensure_imgsize()
>>> assert len(summary['bad_images']) == 1
>>> import pytest
>>> with pytest.raises(Exception):
>>>     self._ensure_imgsize(fail=True)

_ensure_image_data(gids=None, verbose=1)

Download data from “url” fields if specified.

Parameters:

gids (List) – subset of images to download

missing_images(check_aux=True, verbose=0)

Check for images that don’t exist

Parameters:

• check_aux (bool) – if specified also checks auxiliary images

• verbose (int) – verbosity level

Returns:

bad indexes and paths and ids

Return type:

List[Tuple[int, str, int]]

corrupted_images(check_aux=True, verbose=0, workers=0)

Check for images that don’t exist or can’t be opened

Parameters:

• check_aux (bool) – if specified also checks auxiliary images

• verbose (int) – verbosity level

• workers (int) – number of background workers

Returns:

bad indexes and paths and ids

Return type:

List[Tuple[int, str, int]]

normalize_category_ids(start_id=None, order=None)

Reassign category IDs to be consecutive integers starting at start_id.

Optionally reorders category definitions to make the order canonical, sorted, or front-loaded based on a custom list of category names.

Parameters:

• start_id (int | None) – If specified, reassign each category consecutive ids starting with this id.

• order (List[str] | str | None) – Optional control over category ordering. If:

  • None: preserves original order.

  • List[str]: category names to prioritize in that order.

  • “sort”: sorts categories alphabetically by name.

Example

>>> import kwcoco
>>> import ubelt as ub
>>> self = kwcoco.CocoDataset.demo('vidshapes8', verbose=0)
>>> print('Original categories:')
>>> print(ub.urepr(self.dataset['categories'], nl=0))
Original categories:
[{'id': 1, 'name': 'star'}, {'id': 2, 'name': 'superstar'}, {'id': 3, 'name': 'eff'}]
>>> # 1. Reindex starting at 0
>>> self.normalize_category_ids(start_id=0)
>>> print('After start_id=0:')
>>> print(ub.urepr(self.dataset['categories'], nl=0))
After start_id=0:
[{'id': 0, 'name': 'star'}, {'id': 1, 'name': 'superstar'}, {'id': 2, 'name': 'eff'}]
>>> # 2. Sort categories alphabetically
>>> self.normalize_category_ids(order='sort', start_id=1)
>>> print('After order="sort", start_id=1:')
>>> print(ub.urepr(self.dataset['categories'], nl=0))
After order="sort", start_id=1:
[{'id': 1, 'name': 'eff'}, {'id': 2, 'name': 'star'}, {'id': 3, 'name': 'superstar'}]
>>> # 3. Front-load a custom class order
>>> self.normalize_category_ids(order=['superstar'], start_id=100)
>>> print('After order=["superstar"], start_id=100:')
>>> print(ub.urepr(self.dataset['categories'], nl=0))
After order=["superstar"], start_id=100:
[{'id': 100, 'name': 'superstar'}, {'id': 101, 'name': 'eff'}, {'id': 102, 'name': 'star'}]

rename_categories(mapper, rebuild=True, merge_policy='ignore')

Rename categories with a potentially coarser categorization.

Parameters:

• mapper (dict | Callable) – maps old names to new names. If multiple names are mapped to the same category, those categories will be merged.

• merge_policy (str) – How to handle multiple categories that map to the same name. Can be update or ignore.

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self.rename_categories({'astronomer': 'person',
>>>                         'astronaut': 'person',
>>>                         'mouth': 'person',
>>>                         'helmet': 'hat'})
>>> assert 'hat' in self.name_to_cat
>>> assert 'helmet' not in self.name_to_cat
>>> # Test merge case
>>> self = kwcoco.CocoDataset.demo()
>>> mapper = {
>>>     'helmet': 'rocket',
>>>     'astronomer': 'rocket',
>>>     'human': 'rocket',
>>>     'mouth': 'helmet',
>>>     'star': 'gas'
>>> }
>>> self.rename_categories(mapper)

_ensure_json_serializable()

_aspycoco()

Converts to the official pycocotools.coco.COCO object

Todo

• [ ] Maybe expose as a public API?

reroot(new_root=None, old_prefix=None, new_prefix=None, absolute=False, check=True, safe=True, verbose=0)

Modify the prefix of the image/data paths onto a new image/data root.

Parameters:

• new_root (str | PathLike | None) – New image root. If unspecified the current self.bundle_dpath is used. If old_prefix and new_prefix are unspecified, they will attempt to be determined based on the current root (which assumes the file paths exist at that root) and this new root. Defaults to None.

• old_prefix (str | None) – If specified, removes this prefix from file names. This also prevents any inferences that might be made via “new_root”. Defaults to None.

• new_prefix (str | None) – If specified, adds this prefix to the file names. This also prevents any inferences that might be made via “new_root”. Defaults to None.

• absolute (bool) – if True, file names are stored as absolute paths, otherwise they are relative to the new image root. Defaults to False.

• check (bool) – if True, checks that the images all exist. Defaults to True.

• safe (bool) – if True, does not overwrite values until all checks pass. Defaults to True.

• verbose (int) – verbosity level, default=0.

CommandLine

xdoctest -m kwcoco.coco_dataset MixinCocoExtras.reroot

Todo

• [ ] Incorporate maximum ordered subtree embedding?

Example

>>> # xdoctest: +REQUIRES(module:rich)
>>> import kwcoco
>>> import ubelt as ub
>>> import rich
>>> def report(dset):
>>>     gid = 1
>>>     abs_fpath = ub.Path(dset.get_image_fpath(gid))
>>>     rel_fpath = dset.index.imgs[gid]['file_name']
>>>     color = 'green' if abs_fpath.exists() else 'red'
>>>     print(ub.color_text(f'abs_fpath = {abs_fpath!r}', color))
>>>     print(f'rel_fpath = {rel_fpath!r}')
>>> dset = self = kwcoco.CocoDataset.demo()
>>> # Change base relative directory
>>> bundle_dpath = ub.expandpath('~')
>>> rich.print('ORIG self.imgs = {}'.format(ub.urepr(self.imgs, nl=1)))
>>> rich.print('ORIG dset.bundle_dpath = {!r}'.format(dset.bundle_dpath))
>>> rich.print('NEW(1) bundle_dpath       = {!r}'.format(bundle_dpath))
>>> # Test relative reroot
>>> rich.print('[blue] --- 1. RELATIVE REROOT ---')
>>> self.reroot(bundle_dpath, verbose=3)
>>> report(self)
>>> rich.print('NEW(1) self.imgs = {}'.format(ub.urepr(self.imgs, nl=1)))
>>> if not ub.WIN32:
>>>     assert self.imgs[1]['file_name'].startswith('.cache')
>>> # Test absolute reroot
>>> rich.print('[blue] --- 2. ABSOLUTE REROOT ---')
>>> self.reroot(absolute=True, verbose=3)
>>> rich.print('NEW(2) self.imgs = {}'.format(ub.urepr(self.imgs, nl=1)))
>>> assert self.imgs[1]['file_name'].startswith(bundle_dpath)

>>> # Switch back to relative paths
>>> rich.print('[blue] --- 3. ABS->REL REROOT ---')
>>> self.reroot()
>>> rich.print('NEW(3) self.imgs = {}'.format(ub.urepr(self.imgs, nl=1)))
>>> if not ub.WIN32:
>>>     assert self.imgs[1]['file_name'].startswith('.cache')

Example

>>> # demo with auxiliary data
>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes8', aux=True)
>>> bundle_dpath = ub.expandpath('~')
>>> print(self.imgs[1]['file_name'])
>>> print(self.imgs[1]['auxiliary'][0]['file_name'])
>>> self.reroot(new_root=bundle_dpath)
>>> print(self.imgs[1]['file_name'])
>>> print(self.imgs[1]['auxiliary'][0]['file_name'])
>>> if not ub.WIN32:
>>>     assert self.imgs[1]['file_name'].startswith('.cache')
>>>     assert self.imgs[1]['auxiliary'][0]['file_name'].startswith('.cache')

property data_root

In the future we will deprecate data_root for bundle_dpath

property img_root

In the future we will deprecate img_root for bundle_dpath

property data_fpath

data_fpath is an alias of fpath

class kwcoco.coco_dataset.MixinCocoHashing

Bases: object

Mixin for creating and maintaining hashids (i.e. content identifiers)

_build_hashid(hash_pixels=False, verbose=0)

Construct a hash that uniquely identifies the state of this dataset.

Parameters:

• hash_pixels (bool) – If False the image data is not included in the hash, which can speed up computation, but is not 100% robust. Defaults to False.

• verbose (int) – verbosity level

Returns:

the hashid

Return type:

str

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self._build_hashid(hash_pixels=True, verbose=3)
...
>>> # Shorten hashes for readability
>>> import ubelt as ub
>>> walker = ub.IndexableWalker(self.hashid_parts)
>>> for path, val in walker:
>>>     if isinstance(val, str):
>>>         walker[path] = val[0:8]
>>> # Note: this may change in different versions of kwcoco
>>> print('self.hashid_parts = ' + ub.urepr(self.hashid_parts))
>>> print('self.hashid = {!r}'.format(self.hashid[0:8]))
self.hashid_parts = {
    'annotations': {
        'json': 'c1d1b9c3',
        'num': 11,
    },
    'images': {
        'pixels': '88e37cc3',
        'json': '9b8e8be3',
        'num': 3,
    },
    'categories': {
        'json': '82d22e00',
        'num': 8,
    },
}
self.hashid = 'bf69bf15'

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self._build_hashid(hash_pixels=True, verbose=3)
>>> self.hashid_parts
>>> # Test that when we modify the dataset only the relevant
>>> # hashid parts are recomputed.
>>> orig = self.hashid_parts['categories']['json']
>>> self.add_category('foobar')
>>> assert 'categories' not in self.hashid_parts
>>> self.hashid_parts
>>> self.hashid_parts['images']['json'] = 'should not change'
>>> self._build_hashid(hash_pixels=True, verbose=3)
>>> assert self.hashid_parts['categories']['json']
>>> assert self.hashid_parts['categories']['json'] != orig
>>> assert self.hashid_parts['images']['json'] == 'should not change'

_invalidate_hashid(parts=None)

Called whenever the coco dataset is modified. It is possible to specify which parts were modified so unmodified parts can be reused next time the hash is constructed.

Todo

• [ ] Rename to _notify_modification — or something like that

_cached_hashid()

Under Construction.

The idea is to cache the hashid when we are sure that the dataset was loaded from a file and has not been modified. We can record the modification time of the file (because we know it hasn’t changed in memory), and use that as a key to the cache. If the modification time on the file is different than the one recorded in the cache, we know the cache could be invalid, so we recompute the hashid.

Todo

• [ ] This is reasonably stable, elevate this to a public API function.

classmethod _cached_hashid_for(fpath)

Lookup the cached hashid for a kwcoco json file if it exists.

class kwcoco.coco_dataset.MixinCocoObjects

Bases: object

Expose methods to construct object lists / groups.

This is an alternative vectorized ORM-like interface to the coco dataset

annots(annot_ids=None, image_id=None, track_id=None, video_id=None, image_name=None, track_name=None, video_name=None, *, trackid=None, aids=None, gid=None)

Return vectorized annotation objects

Parameters:

• annot_ids (List[int] | None) – annotation ids to reference, if unspecified all annotations are returned. An alias is “aids”, which may be removed in the future.

• image_id (int | None) – return all annotations that belong to this image id. Mutually exclusive with other arguments. An alias is “gids”, which may be removed in the future.

• track_id (int | None) – return all annotations that belong to this track. mutually exclusive with other arguments. An alias is “trackid”, which may be removed in the future.

• video_id (int | None) – return all annotations that belong to this video. mutually exclusive with other arguments.

• track_name (str | None) – name alternative to id

• image_name (str | None) – name alternative to id

• video_name (str | None) – name alternative to id

Returns:

vectorized annotation object

Return type:

kwcoco.coco_objects1d.Annots

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> annots = self.annots()
>>> print(annots)
<Annots(num=11)>
>>> sub_annots = annots.take([1, 2, 3])
>>> print(sub_annots)
<Annots(num=3)>
>>> print(ub.urepr(sub_annots.get('bbox', None)))
[
    [350, 5, 130, 290],
    None,
    None,
]

images(image_ids=None, video_id=None, names=None, video_name=None, *, gids=None, vidid=None)

Return vectorized image objects

Parameters:

• image_ids (List[int] | None) – image ids to reference, if unspecified all images are returned. An alias is gids.

• video_id (int | None) – returns all images that belong to this video id. mutually exclusive with image_ids arg.

• video_name (str | None) – alternative lookup to video-id

• names (List[str] | None) – lookup images by their names.

Returns:

vectorized image object

Return type:

kwcoco.coco_objects1d.Images

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> images = self.images()
>>> print(images)
<Images(num=3)>

>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> video_id = 1
>>> images = self.images(video_id=video_id)
>>> assert all(v == video_id for v in images.lookup('video_id'))
>>> print(images)
<Images(num=2)>

categories(category_ids=None, *, cids=None)

Return vectorized category objects

Parameters:

category_ids (List[int] | None) – category ids to reference, if unspecified all categories are returned. The cids argument is an alias.

Returns:

vectorized category object

Return type:

kwcoco.coco_objects1d.Categories

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> categories = self.categories()
>>> print(categories)
<Categories(num=8)>

videos(video_ids=None, names=None, *, vidids=None)

Return vectorized video objects

Parameters:

• video_ids (List[int] | None) – video ids to reference, if unspecified all videos are returned. The vidids argument is a deprecated alias. Mutually exclusive with other args.

• names (List[str] | None) – lookup videos by their name. Mutually exclusive with other args.

Returns:

vectorized video object

Return type:

kwcoco.coco_objects1d.Videos

Todo

• [ ] This conflicts with what should be the property that

  should redirect to index.videos, we should resolve this somehow. E.g. all other main members of the index (anns, imgs, cats) have a toplevel dataset property, we don’t have one for videos because the name we would pick conflicts with this.

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> videos = self.videos()
>>> print(videos)
>>> videos.lookup('name')
>>> videos.lookup('id')
>>> print('videos.objs = {}'.format(ub.urepr(videos.objs[0:2], nl=1)))

tracks(track_ids=None, names=None, video_id=None, video_name=None)

Return vectorized track objects

Parameters:

• track_ids (List[int] | None) – track ids to reference, if unspecified all tracks are returned.

• names (List[str] | None) – lookup tracks by their name. Mutually exclusive with other args.

• video_id (int | None) – if specified, return tracks in this video id. Note: this query is currently inefficient

• video_name (str | None) – alternative lookup to video_id

Returns:

vectorized video object

Return type:

kwcoco.coco_objects1d.Tracks

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> tracks = self.tracks()
>>> print(tracks)
>>> tracks.lookup('name')
>>> tracks.lookup('id')
>>> print('tracks.objs = {}'.format(ub.urepr(tracks.objs[0:2], nl=1)))

Example

>>> # Test case for video id lookup when not all annotations are in tracks
>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> for image_id in self.images():
>>>     self.add_annotation(image_id=image_id, bbox=[1, 2, 3, 4])
>>> tracks = self.tracks(video_id=1)
>>> assert len(tracks) == 2

class kwcoco.coco_dataset.MixinCocoStats

Bases: object

Methods for getting stats about the dataset

property n_annots

The number of annotations in the dataset

property n_images

The number of images in the dataset

property n_cats

The number of categories in the dataset

property n_tracks

The number of tracks in the dataset

property n_videos

The number of videos in the dataset

category_annotation_frequency()

Reports the number of annotations of each category

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> hist = self.category_annotation_frequency()
>>> print(ub.urepr(hist))
{
    'astroturf': 0,
    'human': 0,
    'astronaut': 1,
    'astronomer': 1,
    'helmet': 1,
    'rocket': 1,
    'mouth': 2,
    'star': 5,
}

conform(**config)

Make the COCO file conform a stricter spec, infers attributes where possible.

Corresponds to the kwcoco conform CLI tool.

KWArgs:

**config :

pycocotools_info (default=True): returns info required by pycocotools

ensure_imgsize (default=True): ensure image size is populated

mmlab (default=False): if True tries to convert data to be compatible with open-mmlab tooling.

legacy (default=False): if True tries to convert data structures to items compatible with the original pycocotools spec

workers (int): number of parallel jobs for IO tasks

Returns:

the inplace modified kwcoco dataset

Return type:

Self

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('shapes8')
>>> dset.index.imgs[1].pop('width')
>>> dset.conform(legacy=True)
>>> assert 'width' in dset.index.imgs[1]
>>> assert 'area' in dset.index.anns[1]

validate(**config)

Performs checks on this coco dataset.

Corresponds to the kwcoco validate CLI tool.

Parameters:

**config – schema (default=True): if True, validate the json-schema

unique (default=True): if True, validate unique secondary keys

missing (default=True): if True, validate registered files exist

corrupted (default=False): if True, validate data in registered files

channels (default=True): if True, validate that channels in auxiliary/asset items are all unique.

require_relative (default=False): if True, causes validation to fail if paths are non-portable, i.e. all paths must be relative to the bundle directory. if>0, paths must be relative to bundle root. if>1, paths must be inside bundle root.

img_attrs (default=’warn’): if truthy, check that image attributes contain width and height entries. If ‘warn’, then warn if they do not exist. If ‘error’, then fail.

verbose (default=1): verbosity flag

workers (int): number of workers for parallel checks. defaults to 0

fastfail (default=False): if True raise errors immediately

Returns:

result containing keys -

status (bool): False if any errors occurred errors (List[str]): list of all error messages missing (List): List of any missing images corrupted (List): List of any corrupted images

Return type:

dict

SeeAlso:

_check_integrity() - performs internal checks

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> import pytest
>>> with pytest.warns(UserWarning):
>>>     result = self.validate()
>>> assert not result['errors']
>>> assert result['warnings']

stats(**kwargs)

Compute summary statistics to describe the dataset at a high level

This function corresponds to kwcoco.cli.coco_stats.

KWargs:

basic(bool): return basic stats’, default=True extended(bool): return extended stats’, default=True catfreq(bool): return category frequency stats’, default=True boxes(bool): return bounding box stats’, default=False

annot_attrs(bool): return annotation attribute information’, default=True image_attrs(bool): return image attribute information’, default=True

SeeAlso:

kwcoco.coco_dataset.MixinCocoStats.stats() kwcoco.coco_dataset.MixinCocoStats.basic_stats() kwcoco.coco_dataset.MixinCocoStats.extended_stats()

Returns:

info

Return type:

dict

basic_stats()

Reports number of images, annotations, and categories.

SeeAlso:

kwcoco.coco_dataset.MixinCocoStats.stats() kwcoco.coco_dataset.MixinCocoStats.basic_stats() kwcoco.coco_dataset.MixinCocoStats.extended_stats()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> print(ub.urepr(self.basic_stats()))
{
    'n_anns': 11,
    'n_imgs': 3,
    'n_videos': 0,
    'n_cats': 8,
    'n_tracks': 0,
}

>>> from kwcoco.demo.toydata_video import random_video_dset
>>> dset = random_video_dset(render=True, num_frames=2, num_tracks=10, rng=0)
>>> print(ub.urepr(dset.basic_stats()))
{
    'n_anns': 20,
    'n_imgs': 2,
    'n_videos': 1,
    'n_cats': 3,
    'n_tracks': 10,
}

extended_stats()

Reports number of images, annotations, and categories.

SeeAlso:

kwcoco.coco_dataset.MixinCocoStats.stats() kwcoco.coco_dataset.MixinCocoStats.basic_stats() kwcoco.coco_dataset.MixinCocoStats.extended_stats()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> print(ub.urepr(self.extended_stats()))

boxsize_stats(anchors=None, perclass=True, gids=None, aids=None, verbose=0, clusterkw={}, statskw={})

Compute statistics about bounding box sizes.

Also computes anchor boxes using kmeans if anchors is specified.

Parameters:

• anchors (int | None) – if specified also computes box anchors via KMeans clustering

• perclass (bool) – if True also computes stats for each category

• gids (List[int] | None) – if specified only compute stats for these image ids. Defaults to None.

• aids (List[int] | None) – if specified only compute stats for these annotation ids. Defaults to None.

• verbose (int) – verbosity level

• clusterkw (dict) – kwargs for sklearn.cluster.KMeans used if computing anchors.

• statskw (dict) – kwargs for kwarray.stats_dict()

Returns:

Stats are returned in width-height format.

Return type:

Dict[str, Dict[str, Dict | ndarray]]

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes32')
>>> infos = self.boxsize_stats(anchors=4, perclass=False)
>>> print(ub.urepr(infos, nl=-1, precision=2))

>>> infos = self.boxsize_stats(gids=[1], statskw=dict(median=True))
>>> print(ub.urepr(infos, nl=-1, precision=2))

find_representative_images(gids=None)

Find images that have a wide array of categories.

Attempt to find the fewest images that cover all categories using images that contain both a large and small number of annotations.

Parameters:

gids (None | List) – Subset of image ids to consider when finding representative images. Uses all images if unspecified.

Returns:

list of image ids determined to be representative

Return type:

List

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> gids = self.find_representative_images()
>>> print('gids = {!r}'.format(gids))
>>> gids = self.find_representative_images([3])
>>> print('gids = {!r}'.format(gids))

>>> self = kwcoco.CocoDataset.demo('shapes8')
>>> gids = self.find_representative_images()
>>> print('gids = {!r}'.format(gids))
>>> valid = {7, 1}
>>> gids = self.find_representative_images(valid)
>>> assert valid.issuperset(gids)
>>> print('gids = {!r}'.format(gids))

class kwcoco.coco_dataset.MixinCocoDraw

Bases: object

Matplotlib / display functionality

draw_image(gid, channels=None)

Use kwimage to draw all annotations on an image and return the pixels as a numpy array.

Parameters:

• gid (int) – image id to draw

• channels (kwcoco.ChannelSpec) – the channel to draw on

Returns:

canvas

Return type:

ndarray

SeeAlso

kwcoco.coco_dataset.MixinCocoDraw.draw_image() kwcoco.coco_dataset.MixinCocoDraw.show_image()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes8')
>>> canvas = self.draw_image(1)
>>> # Now you can dump the annotated image to disk / whatever
>>> # xdoctest: +REQUIRES(--show)
>>> import kwplot
>>> kwplot.autompl()
>>> kwplot.imshow(canvas)

show_image(gid=None, aids=None, aid=None, channels=None, setlim=None, **kwargs)

Use matplotlib to show an image with annotations overlaid

Parameters:

• gid (int | None) – image id to show

• aids (list | None) – annotation ids to highlight within the image

• aid (int | None) – a specific annotation id to focus on. If gid is not give, look up gid based on this aid.

• setlim (None | str) – if ‘image’ sets the limit to the image extent

• **kwargs – show_annots, show_aid, show_catname, show_kpname, show_segmentation, title, show_gid, show_filename, show_boxes,

SeeAlso

kwcoco.coco_dataset.MixinCocoDraw.draw_image() kwcoco.coco_dataset.MixinCocoDraw.show_image()

CommandLine

xdoctest -m kwcoco.coco_dataset MixinCocoDraw.show_image --show

Example

>>> # xdoctest: +REQUIRES(module:kwplot)
>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('vidshapes8-msi')
>>> # xdoctest: +REQUIRES(--show)
>>> import kwplot
>>> kwplot.autompl(verbose=3)
>>> # xdoctest: -REQUIRES(--show)
>>> dset.show_image(gid=1, channels='B8')
>>> # xdoctest: +REQUIRES(--show)
>>> kwplot.show_if_requested()

kwcoco.coco_dataset._normalize_intensity_if_needed(canvas)

class kwcoco.coco_dataset.MixinCocoAddRemove

Bases: object

Mixin functions to dynamically add / remove annotations images and categories while maintaining lookup indexes.

add_video(name, id=None, **kw)

Register a new video with the dataset

Parameters:

• name (str) – Unique name for this video.

• id (None | int) – ADVANCED. Force using this image id.

• **kw – stores arbitrary key/value pairs in this new video

Returns:

the video id assigned to the new video

Return type:

int

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset()
>>> print('self.index.videos = {}'.format(ub.urepr(self.index.videos, nl=1)))
>>> print('self.index.imgs = {}'.format(ub.urepr(self.index.imgs, nl=1)))
>>> print('self.index.vidid_to_gids = {!r}'.format(self.index.vidid_to_gids))

>>> vidid1 = self.add_video('foo', id=3)
>>> vidid2 = self.add_video('bar')
>>> vidid3 = self.add_video('baz')
>>> print('self.index.videos = {}'.format(ub.urepr(self.index.videos, nl=1)))
>>> print('self.index.imgs = {}'.format(ub.urepr(self.index.imgs, nl=1)))
>>> print('self.index.vidid_to_gids = {!r}'.format(self.index.vidid_to_gids))

>>> gid1 = self.add_image('foo1.jpg', video_id=vidid1, frame_index=0)
>>> gid2 = self.add_image('foo2.jpg', video_id=vidid1, frame_index=1)
>>> gid3 = self.add_image('foo3.jpg', video_id=vidid1, frame_index=2)
>>> gid4 = self.add_image('bar1.jpg', video_id=vidid2, frame_index=0)
>>> print('self.index.videos = {}'.format(ub.urepr(self.index.videos, nl=1)))
>>> print('self.index.imgs = {}'.format(ub.urepr(self.index.imgs, nl=1)))
>>> print('self.index.vidid_to_gids = {!r}'.format(self.index.vidid_to_gids))

>>> self.remove_images([gid2])
>>> print('self.index.vidid_to_gids = {!r}'.format(self.index.vidid_to_gids))

add_image(file_name=None, id=None, **kw)

Register a new image with the dataset

Parameters:

• file_name (str | None) – relative or absolute path to image. if not given, then “name” must be specified and we will expect that “auxiliary” assets are eventually added.

• id (None | int) – ADVANCED. Force using this image id.

• name (str) – a unique key to identify this image

• width (int) – base width of the image

• height (int) – base height of the image

• channels (ChannelSpec) – specification of base channels. Only relevant if file_name is given.

• auxiliary (List[Dict]) – specification of auxiliary assets. See CocoImage.add_asset() for details

• video_id (int) – id of parent video, if applicable

• frame_index (int) – frame index in parent video

• timestamp (number | str) – timestamp of frame index

• warp_img_to_vid (Dict) – this transform is used to align the image to a video if it belongs to one.

• **kw – stores arbitrary key/value pairs in this new image

Returns:

the image id assigned to the new image

Return type:

int

SeeAlso:

add_image() add_images() ensure_image()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> import kwimage
>>> gname = kwimage.grab_test_image_fpath('paraview')
>>> gid = self.add_image(gname)
>>> assert self.imgs[gid]['file_name'] == gname

add_asset(gid, file_name=None, channels=None, **kwargs)

Adds an auxiliary / asset item to the image dictionary.

Parameters:

• gid (int) – The image id to add the auxiliary/asset item to.

• file_name (str | None) – The name of the file relative to the bundle directory. If unspecified, imdata must be given.

• channels (str | kwcoco.FusedChannelSpec) – The channel code indicating what each of the bands represents. These channels should be disjoint wrt to the existing data in this image (this is not checked).

• **kwargs – See CocoImage.add_asset() for more details

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset()
>>> gid = dset.add_image(name='my_image_name', width=200, height=200)
>>> dset.add_asset(gid, 'path/fake_B0.tif', channels='B0', width=200,
>>>                height=200, warp_aux_to_img={'scale': 1.0})

add_auxiliary_item(gid, file_name=None, channels=None, **kwargs)

Adds an auxiliary / asset item to the image dictionary.

Parameters:

• gid (int) – The image id to add the auxiliary/asset item to.

• file_name (str | None) – The name of the file relative to the bundle directory. If unspecified, imdata must be given.

• channels (str | kwcoco.FusedChannelSpec) – The channel code indicating what each of the bands represents. These channels should be disjoint wrt to the existing data in this image (this is not checked).

• **kwargs – See CocoImage.add_asset() for more details

Example

>>> import kwcoco
>>> dset = kwcoco.CocoDataset()
>>> gid = dset.add_image(name='my_image_name', width=200, height=200)
>>> dset.add_asset(gid, 'path/fake_B0.tif', channels='B0', width=200,
>>>                height=200, warp_aux_to_img={'scale': 1.0})

add_annotation(image_id, category_id=None, bbox=NoParam, segmentation=NoParam, keypoints=NoParam, id=None, track_id=None, **kw)

Register a new annotation with the dataset

Parameters:

• image_id (int) – image_id the annotation is added to.

• category_id (int | None) – category_id for the new annotation

• bbox (list | kwimage.Boxes) – bounding box in xywh format

• segmentation (Dict | List | Any) – keypoints in some accepted format, see kwimage.Mask.to_coco() and kwimage.MultiPolygon.to_coco(). Extended types: MaskLike | MultiPolygonLike.

• keypoints (Any) – keypoints in some accepted format, see kwimage.Points.to_coco(). Extended types: PointsLike.

• id (None | int) – Force using this annotation id. Typically you should NOT specify this. A new unused id will be chosen and returned.

• track_id (int | str | None) – Some value used to associate annotations that belong to the same “track”. In the future we may remove support for strings.

• **kw – stores arbitrary key/value pairs in this new image, Common respected key/values include but are not limited to the following: score : float prob : List[float] weight (float): a weight, usually used to indicate if a ground truth annotation is difficult / important. This generalizes standard “is_hard” or “ignore” attributes in other formats. caption (str): a text caption for this annotation

Returns:

the annotation id assigned to the new annotation

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_annotation() kwcoco.coco_dataset.MixinCocoAddRemove.add_annotations()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> image_id = 1
>>> cid = 1
>>> bbox = [10, 10, 20, 20]
>>> aid = self.add_annotation(image_id, cid, bbox)
>>> assert self.anns[aid]['bbox'] == bbox

Example

>>> import kwimage
>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> new_det = kwimage.Detections.random(1, segmentations=True, keypoints=True)
>>> # kwimage datastructures have methods to convert to coco recognized formats
>>> new_ann_data = list(new_det.to_coco(style='new'))[0]
>>> image_id = 1
>>> aid = self.add_annotation(image_id, **new_ann_data)
>>> # Lookup the annotation we just added
>>> ann = self.index.anns[aid]
>>> print('ann = {}'.format(ub.urepr(ann, nl=-2)))

Example

>>> # Attempt to add annot without a category or bbox
>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> image_id = 1
>>> aid = self.add_annotation(image_id)
>>> assert None in self.index.cid_to_aids

Example

>>> # Attempt to add annot using various styles of kwimage structures
>>> import kwcoco
>>> import kwimage
>>> self = kwcoco.CocoDataset.demo()
>>> image_id = 1
>>> #--
>>> kw = {}
>>> kw['segmentation'] = kwimage.Polygon.random()
>>> kw['keypoints'] = kwimage.Points.random()
>>> aid = self.add_annotation(image_id, **kw)
>>> ann = self.index.anns[aid]
>>> print('ann = {}'.format(ub.urepr(ann, nl=2)))
>>> #--
>>> kw = {}
>>> kw['segmentation'] = kwimage.Mask.random()
>>> aid = self.add_annotation(image_id, **kw)
>>> ann = self.index.anns[aid]
>>> assert ann.get('segmentation', None) is not None
>>> print('ann = {}'.format(ub.urepr(ann, nl=2)))
>>> #--
>>> kw = {}
>>> kw['segmentation'] = kwimage.Mask.random().to_array_rle()
>>> aid = self.add_annotation(image_id, **kw)
>>> ann = self.index.anns[aid]
>>> assert ann.get('segmentation', None) is not None
>>> print('ann = {}'.format(ub.urepr(ann, nl=2)))
>>> #--
>>> kw = {}
>>> kw['segmentation'] = kwimage.Polygon.random().to_coco()
>>> kw['keypoints'] = kwimage.Points.random().to_coco()
>>> aid = self.add_annotation(image_id, **kw)
>>> ann = self.index.anns[aid]
>>> assert ann.get('segmentation', None) is not None
>>> assert ann.get('keypoints', None) is not None
>>> print('ann = {}'.format(ub.urepr(ann, nl=2)))

add_category(name, supercategory=None, id=None, **kw)

Register a new category with the dataset

Parameters:

• name (str) – name of the new category

• supercategory (str | None) – parent of this category

• id (int | None) – use this category id, if it was not taken

• **kw – stores arbitrary key/value pairs in this new image

Returns:

the category id assigned to the new category

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_category() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_category()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> prev_n_cats = self.n_cats
>>> cid = self.add_category('dog', supercategory='object')
>>> assert self.cats[cid]['name'] == 'dog'
>>> assert self.n_cats == prev_n_cats + 1
>>> import pytest
>>> with pytest.raises(ValueError):
>>>     self.add_category('dog', supercategory='object')

add_track(name=None, id=None, **kw)

Register a new track with the dataset

Parameters:

• name (str | None) – Name of the new track. If unspecified one is created based on a uuid.

• id (int | None) – use this track id, if it was not taken

• **kw – stores arbitrary key/value pairs in this new image

Returns:

the track id assigned to the new track

Return type:

int

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> prev_n_tracks = self.n_tracks
>>> track_id = self.add_track('dog')
>>> assert self.index.tracks[track_id]['name'] == 'dog'
>>> assert self.n_tracks == prev_n_tracks + 1
>>> import pytest
>>> with pytest.raises(ValueError):
>>>     self.add_track('dog')

ensure_video(name, id=None, **kw)

Register a video if it is new or returns an existing id.

Like kwcoco.coco_dataset.MixinCocoAddRemove.add_video(), but returns the existing video id if it already exists instead of failing. In this case all metadata is ignored.

Parameters:

• file_name (str) – relative or absolute path to video

• id (None | int) – ADVANCED. Force using this video id.

• **kw – stores arbitrary key/value pairs in this new video

Returns:

the existing or new video id

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_video() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_video()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> id1 = self.ensure_video('video1')
>>> id2 = self.ensure_video('video1')
>>> assert id1 == id2

ensure_track(name, id=None, **kw)

Register a track if it is new or returns an existing id.

Like kwcoco.coco_dataset.MixinCocoAddRemove.add_track(), but returns the existing track id if it already exists instead of failing. In this case all metadata is ignored.

Parameters:

• file_name (str) – relative or absolute path to track

• id (None | int) – ADVANCED. Force using this track id.

• **kw – stores arbitrary key/value pairs in this new track

Returns:

the existing or new track id

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_track() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_track()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> track_id1 = self.ensure_track('dog')
>>> track_id2 = self.ensure_track('dog')
>>> assert track_id1 == track_id2

ensure_image(file_name, id=None, **kw)

Register an image if it is new or returns an existing id.

Like kwcoco.coco_dataset.MixinCocoAddRemove.add_image(), but returns the existing image id if it already exists instead of failing. In this case all metadata is ignored.

Parameters:

• file_name (str) – relative or absolute path to image

• id (None | int) – ADVANCED. Force using this image id.

• **kw – stores arbitrary key/value pairs in this new image

Returns:

the existing or new image id

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_image() kwcoco.coco_dataset.MixinCocoAddRemove.add_images() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_image()

ensure_category(name, supercategory=None, id=None, **kw)

Register a category if it is new or returns an existing id.

Like kwcoco.coco_dataset.MixinCocoAddRemove.add_category(), but returns the existing category id if it already exists instead of failing. In this case all metadata is ignored.

Returns:

the existing or new category id

Return type:

int

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_category() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_category()

add_categories(cats)

Faster less-safe multi-item alternative to add_category.

We assume the items are well formatted in kwcoco compliant dictionaries, including the “id” field. No validation checks are made when calling this function, but the index is updated, and the hashid is invalidated.

Parameters:

cats (List[Dict]) – list of category dictionaries

SeeAlso:

add_category() add_categories()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> cats = [self.cats[cid] for cid in [2, 3, 5, 7]]
>>> self.remove_categories(cats)
>>> assert self.n_cats == 4 and self._check_integrity()
>>> self.add_categories(cats)
>>> assert self.n_cats == 8 and self._check_integrity()

add_keypoint_categories(keypoint_cats)

Faster less-safe multi-item alternative to add_category.

We assume the items are well formatted in kwcoco compliant dictionaries, including the “id” field. No validation checks are made when calling this function, but the index is updated, and the hashid is invalidated.

Parameters:

cats (List[Dict]) – list of category dictionaries

SeeAlso:

add_category() add_categories()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> keypoint_cats = [{'id': 1, 'name': 'ear'}, {'id': 2, 'name': 'nose'}]
>>> self.add_keypoint_categories(keypoint_cats)
>>> kp_identifiers = keypoint_cats
>>> self.remove_keypoint_categories(kp_identifiers, clean_anns=False)

add_annotations(anns)

Faster less-safe multi-item alternative to add_annotation.

We assume the annotations are well formatted in kwcoco compliant dictionaries, including the “id” field. No validation checks are made when calling this function.

Parameters:

anns (List[Dict]) – list of annotation dictionaries

SeeAlso:

add_annotation() add_annotations()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> anns = [self.anns[aid] for aid in [2, 3, 5, 7]]
>>> self.remove_annotations(anns)
>>> assert self.n_annots == 7 and self._check_integrity()
>>> self.add_annotations(anns)
>>> assert self.n_annots == 11 and self._check_integrity()

add_images(imgs)

Faster less-safe multi-item alternative

We assume the images are well formatted in kwcoco compliant dictionaries, including the “id” field. No validation checks are made when calling this function.

Note

THIS FUNCTION WAS DESIGNED FOR SPEED, AS SUCH IT DOES NOT CHECK IF THE IMAGE-IDs or FILE_NAMES ARE DUPLICATED AND WILL BLINDLY ADD DATA EVEN IF IT IS BAD. THE SINGLE IMAGE VERSION IS SLOWER BUT SAFER.

Parameters:

imgs (List[Dict]) – list of image dictionaries

SeeAlso:

kwcoco.coco_dataset.MixinCocoAddRemove.add_image() kwcoco.coco_dataset.MixinCocoAddRemove.add_images() kwcoco.coco_dataset.MixinCocoAddRemove.ensure_image()

Example

>>> import kwcoco
>>> imgs = kwcoco.CocoDataset.demo().dataset['images']
>>> self = kwcoco.CocoDataset()
>>> self.add_images(imgs)
>>> assert self.n_images == 3 and self._check_integrity()

clear_images()

Removes all images and annotations (but not categories)

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self.clear_images()
>>> print(ub.urepr(self.basic_stats(), nobr=1, nl=0, si=1))
n_anns: 0, n_imgs: 0, n_videos: 0, n_cats: 8, n_tracks: 0

clear_annotations()

Removes all annotations and tracks (but not images and categories)

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self.clear_annotations()
>>> print(ub.urepr(self.basic_stats(), nobr=1, nl=0, si=1))
n_anns: 0, n_imgs: 3, n_videos: 0, n_cats: 8, n_tracks: 0

remove_annotation(aid_or_ann)

Remove a single annotation from the dataset

If you have multiple annotations to remove its more efficient to remove them in batch with kwcoco.coco_dataset.MixinCocoAddRemove.remove_annotations()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> aids_or_anns = [self.anns[2], 3, 4, self.anns[1]]
>>> self.remove_annotations(aids_or_anns)
>>> assert len(self.dataset['annotations']) == 7
>>> self._check_integrity()

remove_annotations(aids_or_anns, verbose=0, safe=True)

Remove multiple annotations from the dataset.

Parameters:

• anns_or_aids (List) – list of annotation dicts or ids

• safe (bool) – if True, we perform checks to remove duplicates and non-existing identifiers. Defaults to True.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> prev_n_annots = self.n_annots
>>> aids_or_anns = [self.anns[2], 3, 4, self.anns[1]]
>>> self.remove_annotations(aids_or_anns)  # xdoc: +IGNORE_WANT
{'annotations': 4}
>>> assert len(self.dataset['annotations']) == prev_n_annots - 4
>>> self._check_integrity()

remove_categories(cat_identifiers, keep_annots=False, verbose=0, safe=True)

Remove categories and all annotations in those categories.

Currently does not change any hierarchy information

Parameters:

• cat_identifiers (List) – list of category dicts, names, or ids

• keep_annots (bool) – if True, keeps annotations, but removes category labels. Defaults to False.

• safe (bool) – if True, we perform checks to remove duplicates and non-existing identifiers. Defaults to True.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> cat_identifiers = [self.cats[1], 'rocket', 3]
>>> self.remove_categories(cat_identifiers)
>>> assert len(self.dataset['categories']) == 5
>>> self._check_integrity()

remove_tracks(track_identifiers, keep_annots=False, verbose=0, safe=True)

Remove tracks and all annotations in those tracks.

Parameters:

• track_identifiers (List) – list of track dicts, names, or ids

• keep_annots (bool) – if True, keeps annotations, but removes tracks labels. Defaults to False.

• safe (bool) – if True, we perform checks to remove duplicates and non-existing identifiers. Defaults to True.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes1')
>>> for ann in self.dataset['annotations']:
...     ann.pop('segmentation')
...     ann.pop('keypoints')
>>> print('self.dataset = {}'.format(ub.urepr(self.dataset, nl=2)))
>>> track_identifiers = [2]
>>> assert len(self.dataset['tracks']) == 2
>>> self.remove_tracks(track_identifiers)
>>> print('self.dataset = {}'.format(ub.urepr(self.dataset, nl=2)))
>>> assert len(self.dataset['tracks']) == 1
>>> self._check_integrity()

remove_images(gids_or_imgs, verbose=0, safe=True)

Remove images and any annotations contained by them

Parameters:

• gids_or_imgs (List) – list of image dicts, names, or ids

• safe (bool) – if True, we perform checks to remove duplicates and non-existing identifiers.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> assert len(self.dataset['images']) == 3
>>> gids_or_imgs = [self.imgs[2], 'astro.png']
>>> self.remove_images(gids_or_imgs)  # xdoc: +IGNORE_WANT
{'annotations': 11, 'images': 2}
>>> assert len(self.dataset['images']) == 1
>>> self._check_integrity()
>>> gids_or_imgs = [3]
>>> self.remove_images(gids_or_imgs)
>>> assert len(self.dataset['images']) == 0
>>> self._check_integrity()

remove_videos(vidids_or_videos, verbose=0, safe=True)

Remove videos and any images / annotations contained by them

Parameters:

• vidids_or_videos (List) – list of video dicts, names, or ids

• safe (bool) – if True, we perform checks to remove duplicates and non-existing identifiers.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes8')
>>> assert len(self.dataset['videos']) == 8
>>> vidids_or_videos = [self.dataset['videos'][0]['id']]
>>> self.remove_videos(vidids_or_videos)  # xdoc: +IGNORE_WANT
{'annotations': 4, 'images': 2, 'videos': 1}
>>> assert len(self.dataset['videos']) == 7
>>> self._check_integrity()

remove_annotation_keypoints(kp_identifiers)

Removes all keypoints with a particular category

Parameters:

kp_identifiers (List) – list of keypoint category dicts, names, or ids

Returns:

num_removed: information on the number of items removed

Return type:

Dict

remove_keypoint_categories(kp_identifiers, clean_anns=True)

Removes all keypoints of a particular category as well as all annotation keypoints with those ids.

Parameters:

• kp_identifiers (List) – list of keypoint category dicts, names, or ids

• clean_anns (bool) – if True, will try to remove the now invalid keypoints from annotations that contain it. May cause breakage.

Returns:

num_removed: information on the number of items removed

Return type:

Dict

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('shapes', rng=0)
>>> kp_identifiers = ['left_eye', 'mid_tip']
>>> remove_info = self.remove_keypoint_categories(kp_identifiers)
>>> print('remove_info = {!r}'.format(remove_info))
>>> # FIXME: for whatever reason demodata generation is not deterministic when seeded
>>> # assert remove_info == {'keypoint_categories': 2, 'annotation_keypoints': 16, 'reflection_ids': 1}
>>> assert self._resolve_to_kpcat('right_eye')['reflection_id'] is None

set_annotation_category(aid_or_ann, cid_or_cat)

Sets the category of a single annotation

Parameters:

• aid_or_ann (dict | int) – annotation dict or id

• cid_or_cat (dict | int) – category dict or id

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> old_freq = self.category_annotation_frequency()
>>> aid_or_ann = aid = 2
>>> cid_or_cat = new_cid = self.ensure_category('kitten')
>>> self.set_annotation_category(aid, new_cid)
>>> new_freq = self.category_annotation_frequency()
>>> print('new_freq = {}'.format(ub.urepr(new_freq, nl=1)))
>>> print('old_freq = {}'.format(ub.urepr(old_freq, nl=1)))
>>> assert sum(new_freq.values()) == sum(old_freq.values())
>>> assert new_freq['kitten'] == 1

class kwcoco.coco_dataset.CocoIndex

Bases: object

Fast lookup index for the COCO dataset with dynamic modification

Variables:

• imgs (Dict[int, dict]) – mapping between image ids and the image dictionaries

• anns (Dict[int, dict]) – mapping between annotation ids and the annotation dictionaries

• cats (Dict[int, dict]) – mapping between category ids and the category dictionaries

• tracks (Dict[int, dict]) – mapping between track ids and the track dictionaries

• kpcats (Dict[int, dict]) – mapping between keypoint category ids and keypoint category dictionaries

• gid_to_aids (Dict[int, List[int]]) – mapping between an image-id and annotation-ids that belong to it

• cid_to_aids (Dict[int, List[int]]) – mapping between an category-id and annotation-ids that belong to it

• cid_to_gids (Dict[int, List[int]]) – mapping between an category-id and image-ids that contain at least one annotation with this category id.

• trackid_to_aids (Dict[int, List[int]]) – mapping between a track-id and annotation-ids that belong to it

• vidid_to_gids (Dict[int, List[int]]) – mapping between an video-id and images-ids that belong to it

• name_to_video (Dict[str, dict]) – mapping between a video name and the video dictionary.

• name_to_cat (Dict[str, dict]) – mapping between a category name and the category dictionary.

• name_to_img (Dict[str, dict]) – mapping between a image name and the image dictionary.

• name_to_track (Dict[str, dict]) – mapping between a track name and the track dictionary.

• file_name_to_img (Dict[str, dict]) – mapping between a image file_name and the image dictionary.

_set

alias of set

_images_set_sorted_by_frame_index(gids=None)

Helper for ensuring that vidid_to_gids returns image ids ordered by frame index.

_set_sorted_by_frame_index(gids=None)

Helper for ensuring that vidid_to_gids returns image ids ordered by frame index.

_annots_set_sorted_by_frame_index(aids=None)

Helper for ensuring that vidid_to_gids returns image ids ordered by frame index.

property cid_to_gids

Example:

>>> import kwcoco
>>> self = dset = kwcoco.CocoDataset()
>>> self.index.cid_to_gids

_add_video(vidid, video)

_add_image(gid, img)

Example

>>> # Test adding image to video that doesnt exist
>>> import kwcoco
>>> self = dset = kwcoco.CocoDataset()
>>> dset.add_image(file_name='frame1', video_id=1, frame_index=0)
>>> dset.add_image(file_name='frame2', video_id=1, frame_index=0)
>>> dset._check_integrity()
>>> print('dset.index.vidid_to_gids = {!r}'.format(dset.index.vidid_to_gids))
>>> assert len(dset.index.vidid_to_gids) == 1
>>> dset.add_video(name='foo-vid', id=1)
>>> assert len(dset.index.vidid_to_gids) == 1
>>> dset._check_integrity()

_add_images(imgs)

See ../dev/bench/bench_add_image_check.py

Note

THIS FUNCTION WAS DESIGNED FOR SPEED, AS SUCH IT DOES NOT CHECK IF THE IMAGE-IDs or FILE_NAMES ARE DUPLICATED AND WILL BLINDLY ADD DATA EVEN IF IT IS BAD. THE SINGLE IMAGE VERSION IS SLOWER BUT SAFER.

_add_annotation(aid, gid, cid, tid, ann)

_add_keypoint_categories(keypoint_cats)

_add_categories(cats)

_add_annotations(anns)

_add_category(cid, name, cat)

_add_track(trackid, name, track)

_remove_all_annotations()

_remove_all_images()

_remove_keypoint_categories(remove_kpcid, verbose=0)

_remove_annotations(remove_aids, verbose=0)

_remove_tracks(remove_trackids, verbose=0)

_remove_categories(remove_cids, verbose=0)

_remove_images(remove_gids, verbose=0)

_remove_videos(remove_vidids, verbose=0)

clear()

build(parent)

Build all id-to-obj reverse indexes from scratch.

Parameters:

parent (kwcoco.CocoDataset) – the dataset to index

Notation:

aid - Annotation ID gid - imaGe ID cid - Category ID vidid - Video ID tid - Track ID

Example

>>> import kwcoco
>>> parent = kwcoco.CocoDataset.demo('vidshapes1', num_frames=4, rng=1)
>>> index = parent.index
>>> index.build(parent)

class kwcoco.coco_dataset.MixinCocoIndex

Bases: object

Give the dataset top level access to index attributes

property anns

property imgs

property cats

property gid_to_aids

property cid_to_aids

property name_to_cat

class kwcoco.coco_dataset.CocoDataset(data=None, tag=None, bundle_dpath=None, img_root=None, fname=None, autobuild=True)

Bases: AbstractCocoDataset, MixinCocoAddRemove, MixinCocoStats, MixinCocoObjects, MixinCocoDraw, MixinCocoAccessors, MixinCocoConstructors, MixinCocoExtras, MixinCocoHashing, MixinCocoIndex, MixinCocoDepricate, NiceRepr

The main coco dataset class with a json dataset backend.

Variables:

• dataset (Dict) – raw json data structure. This is the base dictionary that contains {‘annotations’: List, ‘images’: List, ‘categories’: List}

• index (CocoIndex) – an efficient lookup index into the coco data structure. The index defines its own attributes like anns, cats, imgs, gid_to_aids, file_name_to_img, etc. See CocoIndex for more details on which attributes are available.

• fpath (PathLike | None) – if known, this stores the filepath the dataset was loaded from

• tag (str | None) – A tag indicating the name of the dataset.

• bundle_dpath (PathLike | None) – If known, this is the root path that all image file names are relative to. This can also be manually overwritten by the user.

• hashid (str | None) – If computed, this will be a hash uniquely identifying the dataset. To ensure this is computed see kwcoco.coco_dataset.MixinCocoExtras._build_hashid().

References

http://cocodataset.org/#format http://cocodataset.org/#download

CommandLine

python -m kwcoco.coco_dataset CocoDataset --show

Example

>>> from kwcoco.coco_dataset import demo_coco_data
>>> import kwcoco
>>> import ubelt as ub
>>> # Returns a coco json structure
>>> dataset = demo_coco_data()
>>> # Pass the coco json structure to the API
>>> self = kwcoco.CocoDataset(dataset, tag='demo')
>>> # Now you can access the data using the index and helper methods
>>> #
>>> # Start by looking up an image by it's COCO id.
>>> image_id = 1
>>> img = self.index.imgs[image_id]
>>> print(ub.urepr(img, nl=1, sort=1))
{
    'file_name': 'astro.png',
    'id': 1,
    'url': 'https://i.imgur.com/KXhKM72.png',
}
>>> #
>>> # Use the (gid_to_aids) index to lookup annotations in the image
>>> annotation_id = sorted(self.index.gid_to_aids[image_id])[0]
>>> ann = self.index.anns[annotation_id]
>>> print(ub.urepr((ub.udict(ann) - {'segmentation'}).sorted_keys(), nl=1))
{
    'bbox': [10, 10, 360, 490],
    'category_id': 1,
    'id': 1,
    'image_id': 1,
    'keypoints': [247, 101, 2, 202, 100, 2],
}
>>> #
>>> # Use annotation category id to look up that information
>>> category_id = ann['category_id']
>>> cat = self.index.cats[category_id]
>>> print('cat = {}'.format(ub.urepr(cat, nl=1, sort=1)))
cat = {
    'id': 1,
    'name': 'astronaut',
    'supercategory': 'human',
}
>>> #
>>> # Now play with some helper functions, like extended statistics
>>> extended_stats = self.extended_stats()
>>> # xdoctest: +IGNORE_WANT
>>> print('extended_stats = {}'.format(ub.urepr(extended_stats, nl=1, precision=2, sort=1)))
extended_stats = {
    'annots_per_img': {'mean': 3.67, 'std': 3.86, 'min': 0.00, 'max': 9.00, 'nMin': 1, 'nMax': 1, 'shape': (3,)},
    'imgs_per_cat': {'mean': 0.88, 'std': 0.60, 'min': 0.00, 'max': 2.00, 'nMin': 2, 'nMax': 1, 'shape': (8,)},
    'cats_per_img': {'mean': 2.33, 'std': 2.05, 'min': 0.00, 'max': 5.00, 'nMin': 1, 'nMax': 1, 'shape': (3,)},
    'annots_per_cat': {'mean': 1.38, 'std': 1.49, 'min': 0.00, 'max': 5.00, 'nMin': 2, 'nMax': 1, 'shape': (8,)},
    'imgs_per_video': {'empty_list': True},
}
>>> # You can "draw" a raster of the annotated image with cv2
>>> canvas = self.draw_image(2)
>>> # Or if you have matplotlib you can "show" the image with mpl objects
>>> # xdoctest: +REQUIRES(--show)
>>> from matplotlib import pyplot as plt
>>> fig = plt.figure()
>>> ax1 = fig.add_subplot(1, 2, 1)
>>> self.show_image(gid=2)
>>> ax2 = fig.add_subplot(1, 2, 2)
>>> ax2.imshow(canvas)
>>> ax1.set_title('show with matplotlib')
>>> ax2.set_title('draw with cv2')
>>> plt.show()

Parameters:

• data (str | PathLike | dict | None) – Either a filepath to a coco json file, or a dictionary containing the actual coco json structure. For a more generally coercible constructor see func:CocoDataset.coerce.

  Note: in the future, we may only accept construction from a data dictionary, and use a .load classmethod to handle reading data from a file. This will simplify (and accelerate) the code in the constructor.

• tag (str | None) – Name of the dataset for display purposes, and does not influence behavior of the underlying data structure, although it may be used via convenience methods. We attempt to autopopulate this via information in data if available. If unspecfied and data is a filepath this becomes the basename.

• bundle_dpath (str | None) – the root of the dataset that images / external data will be assumed to be relative to. If unspecfied, we attempt to determine it using information in data. If data is a filepath, we use the dirname of that path. If data is a dictionary, we look for the “img_root” key. If unspecfied and we fail to introspect then, we fallback to the current working directory.

• img_root (str | None) – deprecated alias for bundle_dpath

property fpath

In the future we will deprecate img_root for bundle_dpath

_update_fpath(new_fpath)

Update the write location for this dataset and reroot if necessary.

New method for more robustly updating the file path and bundle directory, still a WIP. Only works when the current dataset is already valid.

This is used when you are reading a source dataset, and modifying, and then plan to write it to a new location. If the new location is in a different bundle dpath than the original file, we need to reroot to otherwise any relative paths will break.

We need to come up with a good name for this function. I don’t think this should happen when just modifying the fpath property. But I also don’t know what a good name that indicates this sets fpath and does a conditional reroot would be.

_infer_dirs()

copy()

Deep copies this object

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> new = self.copy()
>>> assert new.imgs[1] is new.dataset['images'][0]
>>> assert new.imgs[1] == self.dataset['images'][0]
>>> assert new.imgs[1] is not self.dataset['images'][0]

dumps(indent=None, newlines=False)

Writes the dataset out to the json format

Parameters:

• newlines (bool) – if True, each annotation, image, category gets its own line

• indent (int | str | None) – indentation for the json file. See json.dump() for details.

• newlines (bool) – if True, each annotation, image, category gets its own line.

Note

Using newlines=True is similar to:

print(ub.urepr(dset.dataset, nl=2, trailsep=False)) However, the above may not output valid json if it contains ndarrays.

Example

>>> import kwcoco
>>> import json
>>> self = kwcoco.CocoDataset.demo()
>>> text = self.dumps(newlines=True)
>>> print(text)
>>> self2 = kwcoco.CocoDataset(json.loads(text), tag='demo2')
>>> assert self2.dataset == self.dataset
>>> assert self2.dataset is not self.dataset

>>> text = self.dumps(newlines=True)
>>> print(text)
>>> self2 = kwcoco.CocoDataset(json.loads(text), tag='demo2')
>>> assert self2.dataset == self.dataset
>>> assert self2.dataset is not self.dataset

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.coerce('vidshapes1-msi-multisensor', verbose=3)
>>> self.remove_annotations(self.annots())
>>> text = self.dumps(newlines=0, indent='  ')
>>> print(text)
>>> text = self.dumps(newlines=True, indent='  ')
>>> print(text)

_compress_dump_to_fileptr(file, arcname=None, indent=None, newlines=False)

Experimental method to save compressed kwcoco files, may be folded into dump in the future.

_dump(file, indent, newlines, compress)

Case where we are dumping to an open file pointer. We assume this means the dataset has been written to disk.

dump(file=None, indent=None, newlines=False, temp_file='auto', compress='auto', verbose=0)

Writes the dataset out to the json format

Parameters:

• file (PathLike | IO | None) – Where to write the data. Can either be a path to a file or an open file pointer / stream. If unspecified, it will be written to the current fpath property.

• indent (int | str | None) – indentation for the json file. See json.dump() for details.

• newlines (bool) – if True, each annotation, image, category gets its own line.

• temp_file (bool | str) – Argument to safer.open(). Ignored if file is not a PathLike object. Defaults to ‘auto’, which is False on Windows and True everywhere else.

• compress (bool | str) – if True, dumps the kwcoco file as a compressed zipfile. In this case a literal IO file object must be opened in binary write mode. If auto, then it will default to False unless it can introspect the file name and the name ends with .zip

• verbose (int) – verbosity level

Example

>>> import kwcoco
>>> import ubelt as ub
>>> dpath = ub.Path.appdir('kwcoco/demo/dump').ensuredir()
>>> dset = kwcoco.CocoDataset.demo()
>>> dset.fpath = dpath / 'my_coco_file.json'
>>> # Calling dump writes to the current fpath attribute.
>>> dset.dump()
>>> assert dset.dataset == kwcoco.CocoDataset(dset.fpath).dataset
>>> assert dset.dumps() == dset.fpath.read_text()
>>> #
>>> # Using compress=True can save a lot of space and it
>>> # is transparent when reading files via CocoDataset
>>> dset.dump(compress=True)
>>> assert dset.dataset == kwcoco.CocoDataset(dset.fpath).dataset
>>> assert dset.dumps() != dset.fpath.read_text(errors='replace')

Example

>>> import kwcoco
>>> import ubelt as ub
>>> # Compression auto-defaults based on the file name.
>>> dpath = ub.Path.appdir('kwcoco/demo/dump').ensuredir()
>>> dset = kwcoco.CocoDataset.demo()
>>> fpath1 = dset.fpath = dpath / 'my_coco_file.zip'
>>> dset.dump(verbose=1)
>>> fpath2 = dset.fpath = dpath / 'my_coco_file.json'
>>> dset.dump(verbose=1)
>>> assert fpath1.read_bytes()[0:8] != fpath2.read_bytes()[0:8]

_check_json_serializable(verbose=1)

Debug which part of a coco dataset might not be json serializable

_check_integrity()

perform most checks

_check_warnables()

_check_index()

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> self._check_index()
>>> # Force a failure
>>> self.index.anns.pop(1)
>>> self.index.anns.pop(2)
>>> import pytest
>>> with pytest.raises(AssertionError):
>>>     self._check_index()

_check_pointers(verbose=1)

Check that all category and image ids referenced by annotations exist

_build_index()

_abc_impl = <_abc._abc_data object>

rebuild_index()

Build or rebuild the fast lookup index.

This can be used to ensure a clean fast lookup index if the user directly modifies values in self.dataset.

union(*, disjoint_tracks=True, remember_parent=False, **kwargs)

Combines multiple CocoDataset items into one. Names and associations are retained, but ids may be different.

Parameters:

• *others – a series of CocoDatasets that we will merge. Note, if called as an instance method, the “self” instance will be the first item in the “others” list. But if called like a classmethod, “others” will be empty by default.

• disjoint_tracks (bool) – if True, we will assume track-names are disjoint and if two datasets share the same track-name, we will disambiguate them. Otherwise they will be copied over as-is. Defaults to True. In most cases you do not want to set this to False.

• remember_parent (bool) – if True, videos and images will save information about their parent in the “union_parent” field.

• **kwargs – constructor options for the new merged CocoDataset

Note

While categories in datasets are merged, all other information is not. I.e. this assumes images, videos, and annotations in the datsets are all disjoint. If you need to combine datasets you currently must copy one dataset, and then add information from other datasets while removing ambiguities in a way that makes sense in context.

Returns:

a new coco dataset containing original datasets.

Return type:

kwcoco.CocoDataset

CommandLine

xdoctest -m kwcoco.coco_dataset CocoDataset.union

Example

>>> import kwcoco
>>> # Test union works with different keypoint categories
>>> dset1 = kwcoco.CocoDataset.demo('shapes1')
>>> dset2 = kwcoco.CocoDataset.demo('shapes2')
>>> dset1.remove_keypoint_categories(['bot_tip', 'mid_tip', 'right_eye'], clean_anns=True)
>>> dset2.remove_keypoint_categories(['top_tip', 'left_eye'], clean_anns=True)
>>> dset_12a = kwcoco.CocoDataset.union(dset1, dset2)
>>> dset_12b = dset1.union(dset2)
>>> dset_21 = dset2.union(dset1)
>>> def add_hist(h1, h2):
>>>     return {k: h1.get(k, 0) + h2.get(k, 0) for k in set(h1) | set(h2)}
>>> kpfreq1 = dset1.keypoint_annotation_frequency()
>>> kpfreq2 = dset2.keypoint_annotation_frequency()
>>> kpfreq_want = add_hist(kpfreq1, kpfreq2)
>>> kpfreq_got1 = dset_12a.keypoint_annotation_frequency()
>>> kpfreq_got2 = dset_12b.keypoint_annotation_frequency()
>>> assert kpfreq_want == kpfreq_got1
>>> assert kpfreq_want == kpfreq_got2

>>> # Test disjoint gid datasets
>>> dset1 = kwcoco.CocoDataset.demo('shapes3')
>>> for new_gid, img in enumerate(dset1.dataset['images'], start=10):
>>>     for aid in dset1.gid_to_aids[img['id']]:
>>>         dset1.anns[aid]['image_id'] = new_gid
>>>     img['id'] = new_gid
>>> dset1.index.clear()
>>> dset1.rebuild_index()
>>> # ------
>>> dset2 = kwcoco.CocoDataset.demo('shapes2')
>>> for new_gid, img in enumerate(dset2.dataset['images'], start=100):
>>>     for aid in dset2.gid_to_aids[img['id']]:
>>>         dset2.anns[aid]['image_id'] = new_gid
>>>     img['id'] = new_gid
>>> dset1.index.clear()
>>> dset2.rebuild_index()
>>> others = [dset1, dset2]
>>> merged = kwcoco.CocoDataset.union(*others)
>>> print('merged = {!r}'.format(merged))
>>> print('merged.imgs = {}'.format(ub.urepr(merged.imgs, nl=1)))
>>> assert set(merged.imgs) & set([10, 11, 12, 100, 101]) == set(merged.imgs)

>>> # Test data is not preserved
>>> dset2 = kwcoco.CocoDataset.demo('shapes2')
>>> dset1 = kwcoco.CocoDataset.demo('shapes3')
>>> others = (dset1, dset2)
>>> cls = self = kwcoco.CocoDataset
>>> merged = cls.union(*others)
>>> print('merged = {!r}'.format(merged))
>>> print('merged.imgs = {}'.format(ub.urepr(merged.imgs, nl=1)))
>>> assert set(merged.imgs) & set([1, 2, 3, 4, 5]) == set(merged.imgs)

>>> # Test track-ids are mapped correctly
>>> dset1 = kwcoco.CocoDataset.demo('vidshapes1')
>>> dset2 = kwcoco.CocoDataset.demo('vidshapes2')
>>> dset3 = kwcoco.CocoDataset.demo('vidshapes3')
>>> others = (dset1, dset2, dset3)
>>> for dset in others:
>>>     [a.pop('segmentation', None) for a in dset.index.anns.values()]
>>>     [a.pop('keypoints', None) for a in dset.index.anns.values()]
>>> cls = self = kwcoco.CocoDataset
>>> merged = cls.union(*others, disjoint_tracks=1)
>>> print('dset1.anns = {}'.format(ub.urepr(dset1.anns, nl=1)))
>>> print('dset2.anns = {}'.format(ub.urepr(dset2.anns, nl=1)))
>>> print('dset3.anns = {}'.format(ub.urepr(dset3.anns, nl=1)))
>>> print('merged.anns = {}'.format(ub.urepr(merged.anns, nl=1)))

Example

>>> import kwcoco
>>> # Test empty union
>>> empty_union = kwcoco.CocoDataset.union()
>>> assert len(empty_union.index.imgs) == 0

Todo

• [ ] are supercategories broken?

• [ ] reuse image ids where possible

• [ ] reuse annotation ids where possible

• [x] reuse category ids where possible

• [X] handle case where no inputs are given

• [x] disambiguate track-ids

• [x] disambiguate video-ids

subset(gids=None, video_ids=None, copy=False, autobuild=True, **kwargs)

Return a subset of the larger coco dataset by specifying which images to port. All annotations in those images will be taken.

Parameters:

• gids (List[int] | None) – image-ids to copy into a new dataset.

• video_ids (List[int] | None) – list of video ids to copy into the new dataset. This is a convenience argument that simply selects all image ids associated with the given videos.

• copy (bool) – if True, makes a deep copy of all nested attributes, otherwise makes a shallow copy. Defaults to True.

• autobuild (bool) – if True will automatically build the fast lookup index. Defaults to True.

• **kwargs –

  Only used for new cannonical names:

  image_id := gids

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> gids = [1, 3]
>>> sub_dset = self.subset(gids)
>>> assert len(self.index.gid_to_aids) == 3
>>> assert len(sub_dset.gid_to_aids) == 2

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> gids = [1, 2]
>>> sub_dset = self.subset(gids, copy=True)
>>> assert len(sub_dset.index.videos) == 1
>>> assert len(self.index.videos) == 2
>>> assert len(sub_dset.index.tracks) == 2
>>> assert len(self.index.tracks) == 4

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo('vidshapes2')
>>> sub_dset = self.subset(video_ids=[1], copy=True)
>>> assert len(sub_dset.index.videos) == 1
>>> assert len(self.index.videos) == 2

Example

>>> import kwcoco
>>> self = kwcoco.CocoDataset.demo()
>>> sub1 = self.subset([1])
>>> sub2 = self.subset([2])
>>> sub3 = self.subset([3])
>>> others = [sub1, sub2, sub3]
>>> rejoined = kwcoco.CocoDataset.union(*others)
>>> assert len(sub1.anns) == 9
>>> assert len(sub2.anns) == 2
>>> assert len(sub3.anns) == 0
>>> assert rejoined.basic_stats() == self.basic_stats()

view_sql(force_rewrite=False, memory=False, backend='sqlite', sql_db_fpath=None)

Create a cached SQL interface to this dataset suitable for large scale multiprocessing use cases.

Parameters:

• force_rewrite (bool) – if True, forces an update to any existing cache file on disk

• memory (bool) – if True, the database is constructed in memory.

• backend (str) – sqlite or postgresql

• sql_db_fpath (str | PathLike | None) – overrides the database uri

Note

This view cache is experimental and currently depends on the timestamp of the file pointed to by self.fpath. In other words dont use this on in-memory datasets.

CommandLine

KWCOCO_WITH_POSTGRESQL=1 xdoctest -m /home/joncrall/code/kwcoco/kwcoco/coco_dataset.py CocoDataset.view_sql

Example

>>> # xdoctest: +REQUIRES(module:sqlalchemy)
>>> # xdoctest: +REQUIRES(env:KWCOCO_WITH_POSTGRESQL)
>>> # xdoctest: +REQUIRES(module:psycopg2)
>>> import kwcoco
>>> dset = kwcoco.CocoDataset.demo('vidshapes32')
>>> postgres_dset = dset.view_sql(backend='postgresql', force_rewrite=True)
>>> sqlite_dset = dset.view_sql(backend='sqlite', force_rewrite=True)
>>> list(dset.anns.keys())
>>> list(postgres_dset.anns.keys())
>>> list(sqlite_dset.anns.keys())

kwcoco.coco_dataset.demo_coco_data()

Simple data for testing.

This contains several non-standard fields, which help ensure robustness of functions tested with this data. For more compliant demodata see the kwcoco.demodata submodule.

Example

>>> # xdoctest: +REQUIRES(--show)
>>> import kwcoco
>>> from kwcoco.coco_dataset import demo_coco_data
>>> dataset = demo_coco_data()
>>> self = kwcoco.CocoDataset(dataset, tag='demo')
>>> import kwplot
>>> kwplot.autompl()
>>> self.show_image(gid=1)
>>> kwplot.show_if_requested()
